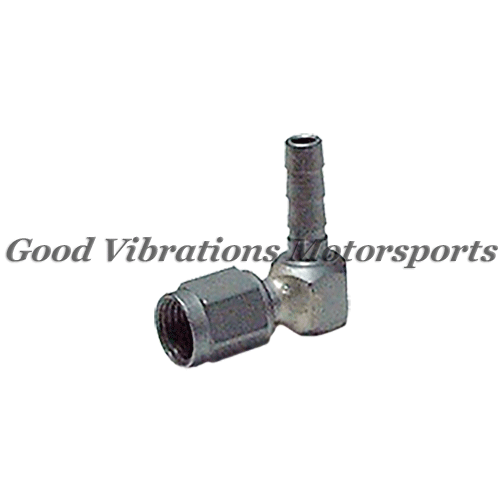

90 degree injector line fitting causing restriction?

Discussion in 'PSI Superchargers Tech Questions' started by srxspec, Jun 10, 2013.

  1. B.DOUCET

    B.DOUCET New Member

    Joined:
    Jun 15, 2004
    Messages:
    317
    Likes Received:
    0
    I wouldn't think a fuel line under pressure with the restriction {jet} at the end could get bubbles.

    #21
  2. B.DOUCET

    B.DOUCET New Member

    Joined:
    Jun 15, 2004
    Messages:
    317
    Likes Received:
    0
    I'm thinking a couple hard 90's on every line, and my junk could get to 8000HP! LOL!

    #22
  3. SoDak

    SoDak Active Member

    Joined:
    Dec 29, 2006
    Messages:
    1,524
    Likes Received:
    3
    Can you explain how air bubbles can be "produced" inside this captured enviroment?

    I would like to learn.

    Or how could one test this or calculate it?

    Is it believeable that 275 psi in this 90° fitting with a .072" nozzle jet would create air bubbles?

    #23
  4. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    In fluid dynamics, a Kármán vortex street (or a von Kármán vortex sheet) is a repeating pattern of swirling vortices caused by the unsteady separation of flow of a fluid around blunt bodies. It is named after the engineer and fluid dynamicist Theodore von Kármán. These vortices cause air bubbles to be created. Vortices are present in flow past objects all the time and get stronger as the flow increases velocity. Not sure that you would have the equipment to test for it other than a flow bench and observe reduced flow as flow velocity is increased. The best thing is just not to use anything in fluid or air that has abrupt changes in flow angles.

    #24
  5. B.DOUCET

    B.DOUCET New Member

    Joined:
    Jun 15, 2004
    Messages:
    317
    Likes Received:
    0
    Mike, do you think the same air bubbles could form with a #3 line being fed by a larger line, under pressure with a restriction at the end?

    #25
  6. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    I don't believe so if it is a straight line without an obstacle or sharp bend but that is a guess. Just for info, I do know this is a problem with some of the fuel pumps on the inlet side and that is why we modify them so they don't go into cavitations which is really vortex shedding at high flows caused by high RPMs.

    #26
  7. jody stroud

    jody stroud ZOMBIE Top Dragster

    Joined:
    Sep 3, 2007
    Messages:
    854
    Likes Received:
    15
    I agree with mike that a straight fitting will in some cases flow more than a drilled 90 deg fitting. But that will not cha he the fact that there are good reasons to use a 90 deg fitting ( looks, more room to adjust valves, and more built in slack if you pop the blower. Another plus is hat they are more durable and less prone to breaking when you tire shake. Top fuel cars run a close or drilled 90 on the back of the heads for their down nozzles. The 60 ton crane that I'm running right now has drilled fittings of at least an 20 feeding the winches. This is with a system pressure of over 2000 psi and it should be noted that ANY cavitation or air bubbles going to a 25000 dollar winch motor would be a very bad and potentially deadly thing. They , Terex/Demag , could have used any type of fittings they wanted ( there is a mix of fitting types all over the crane) but they chose a big drilled 90 to feed the winch motor. The bottom line is if you like the look of the drilled 90 deg fittings better than a straight fitting just put them on and run the car. If in doubt then send the system to a reputable shop and have it flowed with the fittings you chose.

    #27
  8. Micetich

    Micetich Member

    Joined:
    Oct 5, 2006
    Messages:
    76
    Likes Received:
    0
    I understand Kármán vortex street effect to be around a blunt object in the stream with flow on both sides. If it happen on a drilled hole then it would be on any jet also. Cavitation is caused by low pressure area that is lower than the fluids vapor pressure. You are not introducing air into the system but actually causing the alcohol to turn from liquid to vapor (boil). I see it like the pump is pulling a vacuum in one very small area because it can't feed the gears enough fuel fast enough. I believe in returning fuel to the inlet to help this also. Alway feed the pump with the biggest hose possible.

    #28
  9. jody stroud

    jody stroud ZOMBIE Top Dragster

    Joined:
    Sep 3, 2007
    Messages:
    854
    Likes Received:
    15
    You will find some good answers on here....... But there is no shortage of shithouse scientists on here with differing points of view, me included, so read them all and pick the average. LOL Like picking which quote on some work you want done to use. Throw away the cheapest and the highest and choose from what's left. Canter is almost always correct , he will not post up some bullshit that will bust your motor, but there are a hundred diff ways to tune an alcohol car and still get it to run well.

    #29
  10. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    Jody, I appreciate the kind words but not wanting to piss on your boots but that hydraulic system on that crane doesn't provide calibrated fuel flow at the small amount we use. That is just as much flow and pressure as it can get into it. As far as the jets are concerned the fuel is not turning a 90* angle within the jet and the fuel is traveling straight through that orifice and is exiting out of the orifice. The reason some fuel pumps cavitate at high rpms/flows is because the entrance to the pump was designed incorrectly and they now know how to reshape and correct it so it does not cavitate.

    #30
  11. Micetich

    Micetich Member

    Joined:
    Oct 5, 2006
    Messages:
    76
    Likes Received:
    0
    Pump mod changes the inlet to feed fuel to both sides of the gear. On the flow bench it will still cavitate, just at a higher rpm that hopefully you don't see. Returning fuel to the inlet lowers the amount that has to be drawn from the tank inlet. If tank is higher than pump and close, there is less chance of cavitation. Problems when tank is lower than pump with long inlet hose. Just my shithouse observations if anyone cares. LOL

    #31
  12. aj481x

    aj481x Member

    Joined:
    Jan 27, 2004
    Messages:
    976
    Likes Received:
    18
    I think this horse is about dead, but will add a little. The pump stand that we had was originally build for a manufactuer of fuel injection parts, pumps etc. It had 3 flow meters in ranges from very big, 50 gal, down to less than one. We tested a lot of things like flow loss through barrel valves, jet holders, etc. We tested the exact question about flow through fittings. The setup was a .070" Enderle port jet flowing 150 psi. The flow was just over 1 gpm and with straight fittings, or 1 and 2 90 dgree there was absolutely no measureable difference. We also tested another question that comes up here often, the size of tank vents. At 14 gpm, we could find no change in flow until going from a #8 to a #6. Also never saw any reason not to return fuel to inlet side of pump.

    All of these things would change if any of the parts were maxxed out, such as pump barely big enough, really high pressures, flowing really large jets, etc. The "happy spot" always seems to be a pump looping back 2-4 gals, pressures 100-150, jets in mid range. Most important, if you get the car in a good tuning range, never change fittings, etc. Jet to maintain the fuel pressure.

    #32
  13. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    But were those double drilled 90* bends or smooth 90* bend fittings you tested?

    #33
  14. B.DOUCET

    B.DOUCET New Member

    Joined:
    Jun 15, 2004
    Messages:
    317
    Likes Received:
    0
    Very good info 481. Thanks

    #34
  15. ozrace

    ozrace New Member

    Joined:
    Dec 8, 2012
    Messages:
    23
    Likes Received:
    1
    Cavitation occurs when local pressure drops below the vapor pressure of the fluid.
    It causes a vapour bubble that then collapses almost immediately.
    It can occur in our fuel pumps at high RPM, also boat props, etc.

    As others have said, if the restrictor after the 90 degree fitting (the nozzle) is smaller than the ID of the fitting, then the pressure before the nozzle should be maintained and I really doubt that cavitation is occurring there. The fact that the fuel is already under pressure makes cavitation a lot less likely
    I can't remember the ID of the 90s but will check.

    We changed from straight to Enderle 90 degree fittings after Enderle assured us they flow as good or better than the straights.

    No change in tune up or performance for us.

    This, and what aj481x has said, makes me happy with the setup.. although if I'd known that radiused fittings are available I would have gone with them.

    IMO, a 90 back into the pump inlet is a similar situation.. if the flow has been restricted through a jet (main jet or pump loop), then the velocity of fluid through the fitting is going to be pretty low and it won't really care about a 90 degree turn.

    #35
    Last edited: Jun 14, 2013
  16. Dave Koehler

    Dave Koehler Member

    Joined:
    Sep 10, 2004
    Messages:
    443
    Likes Received:
    14
    Concerning the back to the pump thing.
    It's kind of hit and miss and depends on the combo. I run into it occasionally and it flat vibrates the flow bench. For my sportsman racers we just go back to the tank via a return collection block. It's easier than trying to diagnose it later.

    It's been a decade or 2 and I have forgotten the results. I need to do another back to back to see the difference in the back pressure to the check valves between back to the pump versus to the tank. The question would be does the incoming fuel back up the returning fuel and/or does the returning fuel interrupt the flow to the pump or both.

    The big thing for me in returning to the pump is that the fuel heats up quicker.
    You wouldn't think that in the short time span these engines run that returning to the pump would be a problem but factor in the burnout and other run time it can change. This has to be considered when one is being fussy about their tune up. It's one of those "pick your battle" things. On a side note, I sat in the stands at Indy 1 year and timed the alcohol cars run time from start to finish. 3-4 minutes on average when there were no delays or burn down wars.

    Even returning a foot before the pump seems to work fine.
    When I have fabbed up something for the 1 foot or more scenario the fitting is angled back toward the pump as opposed to being 90 degrees to the fluid flow.

    Dave Koehler
    http://www.koehlerinjection.com

    #36
  17. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    The only way that the flow through a 90 degree bend does not reduce the output flow through a jet is that the flow through whatever size jet used is less than the reduced flow though the line. The fact is a 90 degree sharp bend reduces flow and if you kept on increasing the size of the jet then at some point the flow will be reduced. Don't know at what size jet the flow reduction would show up. That would take somebody with a flow bench to find out. The size jet that this occurs at would be different for a double drilled 90 degree fitting than one with a smooth radiused 90 degree turn.

    #37
  18. blown375

    blown375 New Member

    Joined:
    Sep 9, 2005
    Messages:
    733
    Likes Received:
    0
    Here is some food for thought...Hat and port blocks are drilled 90* fittings, should they all be reengineered ?
    If the volume and flow rate going through the system is greater than the the requirements at the orfice there is no issue.
    Just my opinion :p

    #38
  19. Will Hanna

    Will Hanna We put the 'inside' in Top Alcohol
    Staff Member

    Joined:
    May 6, 2003
    Messages:
    6,706
    Likes Received:
    132
    classic

    Great info here.

    It also illustrates how drag racers will ask enough people until they find someone that tells them what they want to hear....then it's ok.

    #39
  20. TADHemiracer

    TADHemiracer Member

    Joined:
    Dec 9, 2010
    Messages:
    359
    Likes Received:
    14
    What They Want To Hear

    Well said, Will. A lot of different opinions out there.
