Smokin Hemi

Discussion in 'PSI Superchargers Tech Questions' started by Money Shot, May 10, 2011.

Page 1 of 2
  1. Money Shot

    Money Shot Member

    Joined:
    Apr 13, 2009
    Messages:
    244
    Likes Received:
    2
    I have a Veney KB Hemi that has a bad smokin problem. It moves a lot of oil through the exhaust but no blowby. Leak down is fine and no oil in puke tank. Heads are perfect and valve guides are in great shape. I'm thinking maybe the oil rings are bad??? The intake is also sealed very well and it's not leaking there. I've resealed it twice thinking that was the problem. Any ideas I'm overlooking? If you want to see it smoking check out it's the Money Shot car at the end of the clip. http://www.youtube.com/watch?v=IATEC8ovGYo

    #1
    Last edited: May 10, 2011
    Money Shot, May 10, 2011
  2. secondwindracing

    secondwindracing top alcohol

    Joined:
    Feb 10, 2004
    Messages:
    2,894
    Likes Received:
    7
    did it ever go lean on you?.Dave

    #2
    secondwindracing, May 10, 2011
  3. Money Shot

    Money Shot Member

    Joined:
    Apr 13, 2009
    Messages:
    244
    Likes Received:
    2
    It's never been hot. 1050 tops. It's has smoked with two different sets of heads.

    #3
    Money Shot, May 10, 2011
  4. Outlaw68

    Outlaw68 Member

    Joined:
    Oct 14, 2007
    Messages:
    188
    Likes Received:
    1
    I have seen this a couple times, both times the rings were upside down on the pistons.. food for thought.

    #4
    Outlaw68, May 10, 2011
  5. Will Hanna

    Will Hanna We put the 'inside' in Top Alcohol
    Staff Member

    Joined:
    May 6, 2003
    Messages:
    6,706
    Likes Received:
    132
    what brand

    what brand of ring?

    #5
    Will Hanna, May 11, 2011
  6. kosky racing

    kosky racing Comp Eliminator

    Joined:
    May 11, 2003
    Messages:
    890
    Likes Received:
    48
    smoking

    Does it have pushrod tubes---if so see if there may be holes in them.

    #6
    kosky racing, May 11, 2011
  7. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    I guess the largest amout of smoke is when you clear out the motor at stage. That is a lot but didn't know if it is the light or what but it didn't look very oil smoke blue in color. It was pretty dark looking. Are you using any additives in your alcohol? I couldn't see much smoke during the actual run or when you let up at the end.

    #7
    Mike Canter, May 11, 2011
  8. Money Shot

    Money Shot Member

    Joined:
    Apr 13, 2009
    Messages:
    244
    Likes Received:
    2
    Ol Smokey

    Rings were new Total Seal. If the rings were in upside down would it have blowby? Mike, You have a good point about the fuel additive. I used a bottle of Power Plus grape scent and a bottle of Power Plus top lube with this 55gl drum. Ill try some alky with no lube in it and see if it changes. Once its under a load it doesnt smoke much. Thanks for the input.

    #8
    Money Shot, May 11, 2011
  9. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    Let us know if you see any difference.

    #9
    Mike Canter, May 11, 2011
  10. 23T Hemmee

    23T Hemmee Member

    Joined:
    Jul 10, 2007
    Messages:
    449
    Likes Received:
    0
    I was thinking the grape scented mix was fuel lube, if thats the case sounds like a double mix. One bottle of Power Plus is good for a drum.

    #10
    23T Hemmee, May 11, 2011
  11. alt 6153

    alt 6153 Member

    Joined:
    Dec 26, 2008
    Messages:
    266
    Likes Received:
    1
    I agree with Mike. That looks like rich fuel smoke. My car will just wisp a little black smoke at the hit. I think I'm a little rich at the hit before the boost starts to come up. I also agree that the grape scent plus the Power Plus, would be a double shot of lube.

    #11
    alt 6153, May 11, 2011
    Ron Meyer likes this.
  12. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    I think it is that Smoking Hot young lady painetd on the side of the car. That is enough to make anything smoke. Great paint job.

    #12
    Mike Canter, May 11, 2011
  13. Blownalky

    Blownalky Top Sportsman

    Joined:
    May 9, 2005
    Messages:
    826
    Likes Received:
    8

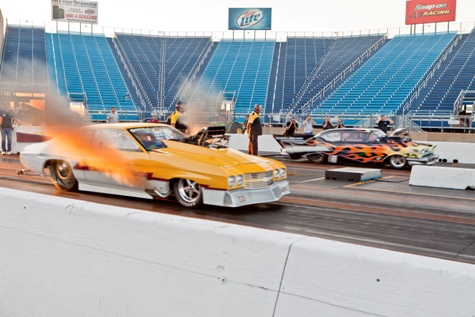

    This is what mine did off the line with a roots and no lube. Just a rich puddle issue at idle as it would do it to a lesser extent at the hit on the burnout. Didn't smoke anywhere else and it's not oil.

    [​IMG]

    #13
    Last edited: May 11, 2011
    Blownalky, May 11, 2011
  14. wcolantuoni

    wcolantuoni Jr. Dragster

    Joined:
    Feb 9, 2005
    Messages:
    39
    Likes Received:
    0
    I had the same issue a few years back. I got rid of the gapless rings and the problem went away. I have also been told that KB had a batch of sleeves made by a third party that no matter what you did rings would not seal against and would smoke like that.

    I also had a set of heads that would leak through the push rod tubes. Once they were sleeved no more smoke.

    #14
    wcolantuoni, May 11, 2011
  15. secondwindracing

    secondwindracing top alcohol

    Joined:
    Feb 10, 2004
    Messages:
    2,894
    Likes Received:
    7
    Money Shot...thanks for the hex.....just found a broken ring in my motor:eek:...lut us know what you find out..Dave

    #15
    secondwindracing, May 11, 2011
  16. bruce mullins

    bruce mullins Top Dragster

    Joined:
    Aug 2, 2003
    Messages:
    1,002
    Likes Received:
    5
    this is possibly the problem . . .the Veney heads have push rod tubes running through the intake ports and if the tube is leaking it will let oil seep into the port while sitting. it will take a good burnout to clear it all out and be fine on the run , but the port will get oil in it again before the next fire up and smoke each time. . with the head off, fill the port with some fluid and see if it runs out around the tube .

    #16
    bruce mullins, May 11, 2011
  17. Money Shot

    Money Shot Member

    Joined:
    Apr 13, 2009
    Messages:
    244
    Likes Received:
    2
    No compression

    Lost all compression in #1 cylinder
    Tonight. Still smokes without top lube. Gonna tear
    It down next week. Bleh!!!!

    #17
    Money Shot, May 13, 2011
  18. Peacemaker AFC

    Peacemaker AFC New Member

    Joined:
    Mar 30, 2011
    Messages:
    106
    Likes Received:
    0
    Smokin

    Take them pos total seal rings out of it and put a set of A&C rings and if you don't know what a&c is ackerly and childs

    #18
    Peacemaker AFC, May 25, 2011
  19. Money Shot

    Money Shot Member

    Joined:
    Apr 13, 2009
    Messages:
    244
    Likes Received:
    2
    Rings


    We did have Total Seal rings in it and we replaced them with A&C rings. NO MORE SMOKE AND RUNS LIKE A CHAMP! :cool: Thanks for the advice!!

    #19
    Money Shot, May 29, 2011
  20. rb0804

    rb0804 Active Member

    Joined:
    Aug 7, 2010
    Messages:
    671
    Likes Received:
    38
    Did you hone the bore before installing the A&C rings?

    #20
    rb0804, Jun 1, 2011
