Electric high speed ???

Discussion in 'PSI Superchargers Tech Questions' started by blown375, Dec 10, 2008.

Page 1 of 2
  1. blown375

    blown375 New Member

    Joined:
    Sep 9, 2005
    Messages:
    733
    Likes Received:
    0
    Can you use a NOS fuel solenoid as a electric high speed on a blown alcohol car ?

    #1
    blown375, Dec 10, 2008
  2. jonimus333

    jonimus333 New Member

    Joined:
    Nov 7, 2007
    Messages:
    504
    Likes Received:
    0
    hy speed

    Don't know about the NOS thing, but years ago I used elec. Hy-speeds from Rons Fuel inj. Worked good. Good luck Don

    #2
    jonimus333, Dec 10, 2008
  3. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    Nope because the magnet does not generate enough force to open the plunger against the pressures that you are using in your alcohol fuel system. You can use a nitrous solenoid or a special NOS alcohol solenoid with a bigger coil on it.

    #3
    Mike Canter, Dec 10, 2008
  4. 69outlaw

    69outlaw New Member

    Joined:
    Jan 16, 2007
    Messages:
    22
    Likes Received:
    0
    We run Nitro/alcohol solenoids with a MSD 5 stage delay box as a timer. Works real well. A buddy of mine makes a block to screw the solenoids into. You use enderle bypass pills. They screw in just like in the barrle valve. We y the main line to the barrel valve. One side to the barrel valve and the other to the hi speed block. Then run the returns from the solenoids to the fuel cell.

    #4
    69outlaw, Dec 10, 2008
  5. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    69Outlaw...you probably have the same unit as us. Ours was made by John Scialpi (I hope I spelled that right). It works great. You can get them made with 3 or 4 solenoids. I have contact info if anyone is interested. As a note you cannot use them in NHRA TA/FC classes because they are electrically controlled.

    #5
    Mike Canter, Dec 11, 2008
  6. RBS

    RBS Authorized Merchant

    Joined:
    May 6, 2004
    Messages:
    1,095
    Likes Received:
    0
    Scialpi Management

    HERE ARE SOME PICS OF THE SCIALPI MANAGEMENT http://www.rbssuperchargers.com/Store_Detail.cfm?ID=228866&InfoID=3921
    http://www.rbssuperchargers.com/Store_Detail.cfm?ID=228862&InfoID=3921
    BOB YOU CAN CHECK WITH LONNIE HOODE ON THE TYPE THAT 69 OUTLAW IS REFFEREING TO AS HE USES SOME OF THAT TYPE OF SET UPS IN SOME OF HIS TUNING APPLICATIONS. 508-776-4898 IF YOU NEED A SET UP SIMILAR TO 69 OUTLAWS WE HAVE ONE http://www.rbssuperchargers.com/Store_Detail.cfm?ID=221933&InfoID=3921

    #6
    RBS, Dec 11, 2008
  7. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    This John Scialpi fuel management system that RBS now sells works great on our car. I have never had a problem with it.

    #7
    Mike Canter, Dec 11, 2008
  8. JRB

    JRB Guest

    As JR stated, we use the Scialpi unit on 4 or 5 cars we tune. Works bad ass, and it easy to mount and replace/change jets.

    Ours are controlled with a dedenbear controller. Heres a link to the box. It works KILLER and is really idiot proof. http://www.dedenbear.com/noc1txt.htm

    Contact Lonnie or I for any questions. www.LHPRacing.com

    #8
    JRB, Dec 11, 2008
  9. JP

    JP Member

    Joined:
    Oct 8, 2005
    Messages:
    229
    Likes Received:
    0
    Also Electrimotion has a 4 selenoid unit for about $ 975 you can look it up at theire web site.

    #9
    JP, Dec 11, 2008
  10. blwnaway

    blwnaway Member

    Joined:
    Jun 28, 2006
    Messages:
    411
    Likes Received:
    1

    We used them for years with no problems....got lucky I guess.

    #10
    blwnaway, Dec 11, 2008
  11. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    The problem is with regular fuel solenoids is also the orifice in the solenoid is too small. The testing I did shows that a standard NOS fuel solenoid will not open when the fuel pressures are high and at some medium pressures it might or might not open. The problem is most racers would not know if the solenoid did or did not open and performance will suffer. The only way you would know if it opened or not would be to have a fuel flow sensor on the data logger or see the slight change in fuel pressure (which is hard).

    #11
    Mike Canter, Dec 12, 2008
  12. Eric David Bru

    Eric David Bru Member

    Joined:
    Sep 4, 2005
    Messages:
    417
    Likes Received:
    1
    [​IMG]

    PN 16060

    EDB

    #12
    Eric David Bru, Dec 12, 2008
  13. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    Thats the one. Thanks Eric. We use four of those.

    #13
    Mike Canter, Dec 12, 2008
  14. Eric David Bru

    Eric David Bru Member

    Joined:
    Sep 4, 2005
    Messages:
    417
    Likes Received:
    1

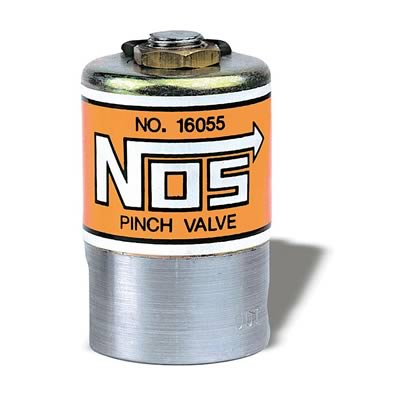

    This should also work:
    Normally closed:
    [​IMG]
    PN 16055NOS
    EDB

    #14
    Eric David Bru, Dec 13, 2008
  15. Alkydrag

    Alkydrag Sr. Dragster

    Joined:
    Dec 24, 2003
    Messages:
    351
    Likes Received:
    1
    We use the old school AFT fuel mangement with timers and not valves. It works everytime without fail. I don't like the solenoid versions because of the fear of a solenoid not working.

    #15
    Alkydrag, Dec 14, 2008
  16. SoDak

    SoDak Active Member

    Joined:
    Dec 29, 2006
    Messages:
    1,524
    Likes Received:
    3
    My understanding was that the timer told the solenoid when to activate. After reading your comments,(no solenoid) how does it work?:confused:

    #16
    SoDak, Dec 15, 2008
  17. Alkydrag

    Alkydrag Sr. Dragster

    Joined:
    Dec 24, 2003
    Messages:
    351
    Likes Received:
    1
    After reading my quote, it seems to be a little misleading. The timer is activated off a throttle switch. The timer opens the jet through an air operated actuator. In between the timer and actuator is a "NOT" valve. A NOT valve has 3 ports. A supply (1), an output (3) and a pilot (2). When air is applied to the supply, port 1, it becomes an output at port 3. When air is applied to the pilot, port 2, it shuts off the output and downstream air is exhausted. Output air is applied to an actuator which opens the jet. The pilot is operated from another timer. We use the 2nd timer to close one jet and open another.I hope this clears it up.

    #17
    Alkydrag, Dec 15, 2008
  18. SoDak

    SoDak Active Member

    Joined:
    Dec 29, 2006
    Messages:
    1,524
    Likes Received:
    3
    Thanks AlkyDrag

    Ron's Fuel Injection gets $171 for there electric valve with pill holder.
    And $55 for the solenoid only.
    I don't use electronics, but have been contemplating it, and just got these prices from Ron's.

    #18
    SoDak, Dec 16, 2008
  19. Mike Canter

    Mike Canter Top Dragster
    Staff Member

    Joined:
    Mar 10, 2004
    Messages:
    4,630
    Likes Received:
    189
    That Ron's pill holder is neat but it only uses Ron's unique type jets. It also costs a lot because you can change jets without taking off the fuel line but you don't change the size of the high speed that much so is it worth it.

    #19
    Mike Canter, Dec 16, 2008
  20. nitrowannabe

    nitrowannabe Member

    Joined:
    Oct 9, 2006
    Messages:
    414
    Likes Received:
    20
    Alky Drag
    Do you have the Clippard valves on your old school AFT ? Thanks.

    #20
    nitrowannabe, Dec 16, 2008
